COCCO50

TRANSPORTER COCCO 50

Cocco 50. A masterpiece of engineering and design.

Designed to push beyond limits. The COCCO 50 is the transporter that keeps moving where others come to a halt. Its extraordinary versatility makes it an indispensable tool: it can transport all types of loads with ease. One machine, endless possibilities.

Download PDF

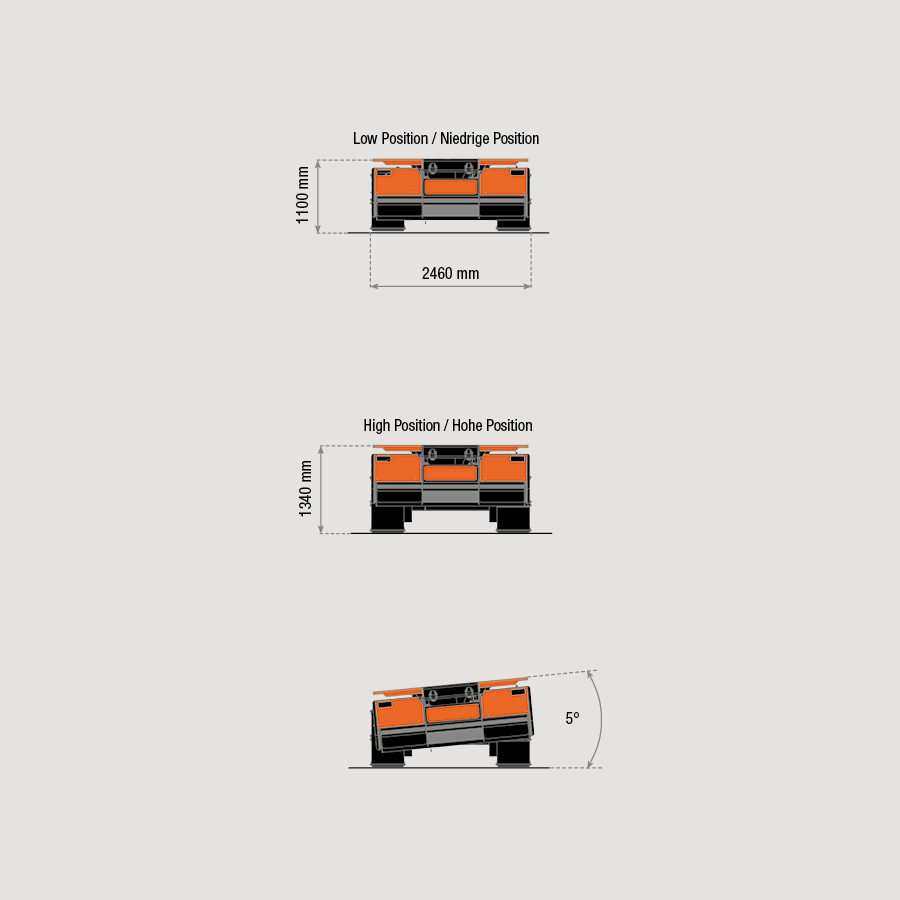

Dimensions ( h × w × l )
1,1 × 2,46 × 6,25 m
Weight (empty)
10.000 Kg
Load Capacity
40.000 kg

Technical specifications

Fully loaded weight 50.000 Kg
Maximum speed 2,4 Km/h
Combustion engine DEUTZ TCD 3.6 – Stage V

Loading tables

Request further information

Standard equipment

  • Longitudinal leveling 8°/5°
  • Lateral leveling 5°
  • Maximum gradeability 35%
  • Maximum lateral slope 18%
  • Maximum power 105 kW – 141 Hp
  • Diesel tank capacity 180 L
  • Hydrostatic transmission
  • Pressure 350 bar
  • Hydraulic system with variable displacement pump
  • CAN Bus remote control
